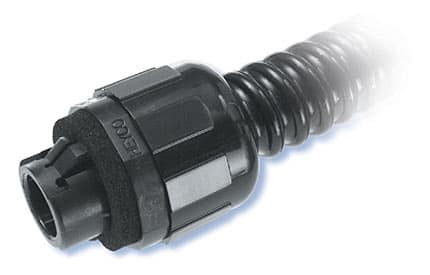

Heyco-Flex™ Liquid Tight Conduit Fittings Straight-Thru, Snap-In Hubs

For Flexible, Nonmetallic Liquid Tight Heyco-Flex™ I Conduit and Heyco-Flex™ II Tubing

Specifications

Part number and specification

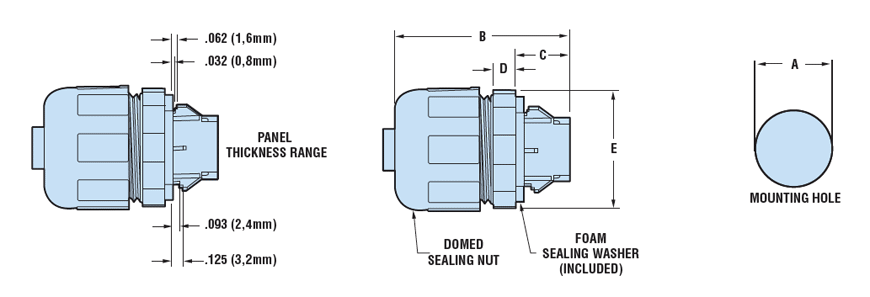

FITS CONDUIT/ TUBING TRADE SIZE	PART NO.	DESC.	PART DIMENSIONS
			A Mounting Hole Dia.		B Max O.A. Length		C Body Length		D		E
									Wrenching
									Nut Thk.		Flat Size
	Black		in.	mm.	in.	mm.	in.	mm.	in.	mm.	in.	mm.
1/4	8382	HFC 1/4-S	.500	12,7	1.50	38,1	.45	11,3	.22	5,6	.88	22,2
3/8	8384	HFC 3/8-S	.875	22,2	2.00	50,8	.63	15,9	.25	6,3	1.33	33,7
1/2	8386	HFC 1/2-S	.875	22,2	2.00	50,8	.63	15,9	.25	6,3	1.33	33,7
3/4	8388	HFC 3/4-S	1.090	27,7	2.03	51,6	.63	15,9	.25	6,3	1.56	39,7
1	8390	HFC 1-S	1.375	34,9	2.25	57,1	.78	19,8	.25	6,3	1.81	46,0

Standard color black.

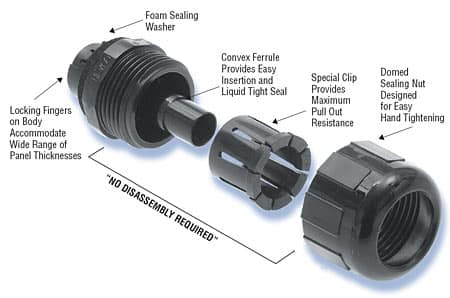

Assembly friendly! The installer simply pushes the conduit or tubing onto the ferrule, then tightens the domed sealing nut. This completed assembly can then be snapped into the panel with fingertip pressure.
Convex ferrule ensures liquid tight seal.
No threading of the conduit or tubing required to install. This eliminates the possibility of cutting the conduit and creating leak paths.
Complete conduit/fitting system is reusable. Conduit will not wind tight onto the connector during assembly and can be easily removed by pulling while turning in a clockwise direction.
Multiple sizes for use with Heyco-Flex Conduit and Tubing.
Suitable for indoor/outdoor use; for original equipment manufacturers or field installers.
Resist salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. (This feature is not assessed by UL certification or testing.)
Foam sealing washer included.

Material		Nylon 6/6
Certifications		Listed under Underwriters’ Laboratories File E28430
Certifications		Certified by Canadian Standards Association File 84579 and 81067
Flammability Rating		94V-2
Temperature Range		-22°F (-30°C) to 221°F (105°C)
IP Rating		IP 68 up to 70 psi (5 bar) water pressure
