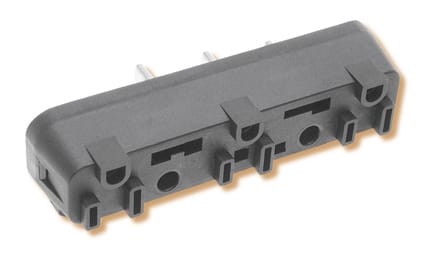

Heyco® Preassembled Cordset Components – Tri-Tap Premold

Download Datasheet
Specifications

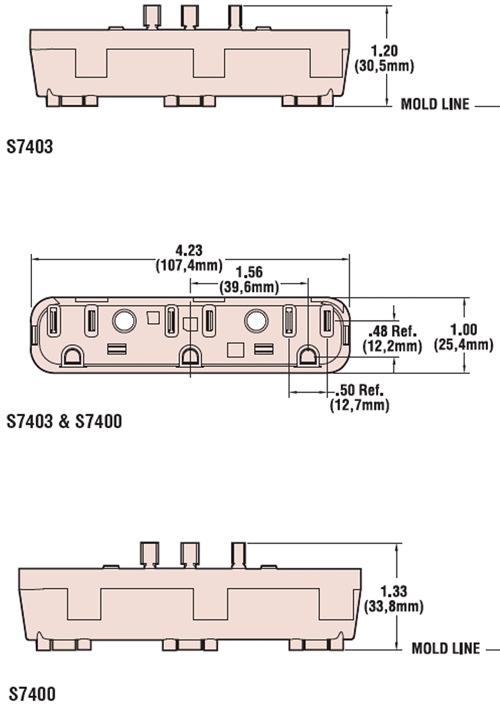

Part number and specification


PART DATA PART NO. APPLICATION TOOLING* PDF
Type Color AWG Range Die** Crimp Punch Anvil
Female Receptacle Black 18-14 S7403 S7403SXX5 C862, C863 C851 PDF
14-10 S7400 S7400SXX5 C856, C857 PDF
* Use the Heyco Standard Applicator Die (indicated by “S” in the Die Part No.), click here. ** “XX” represents Wire Gauge. Please specify Wire Gauge when ordering.



Features



Tri-Tap Premold—NEMA 5-15R

For Heyco Application Equipment, click here

  • Multiple piece unit that reduces the number of crimp connections on a Tri-Tap extension cord from 9 down to 3. Now you can crimp all 3 terminals at once.
  • Significantly reduce the amount of material required for overmolding, substantially reducing the cycle time and cost.
  • Available in assembled or component form.
  • Heyco Contacts MUST be used in Heyco pre-molds.
  • DFARS Compliant

Components For Tri-Tap Premold

QuickSpecs

Materials Alloy 260 Brass (70% Cu, 30% Zn. Higher Cu content resists dezincification)
Nylon 6/6
Standards NEMA 5-15R
Voltage/Current Rating 125 Volts, 15 Amps

Competitor Cross Reference
Use our cross-reference tool to find equivalent Heyco parts that match competitor products, ensuring compatibility and performance.
