Female Turn-2-Lock Premold Shells For Finished Female T2L Configurations, click here. |
||||||
| Part No. Natural | Description | NEMA Config. | AMPS | For Contacts | ||
|---|---|---|---|---|---|---|

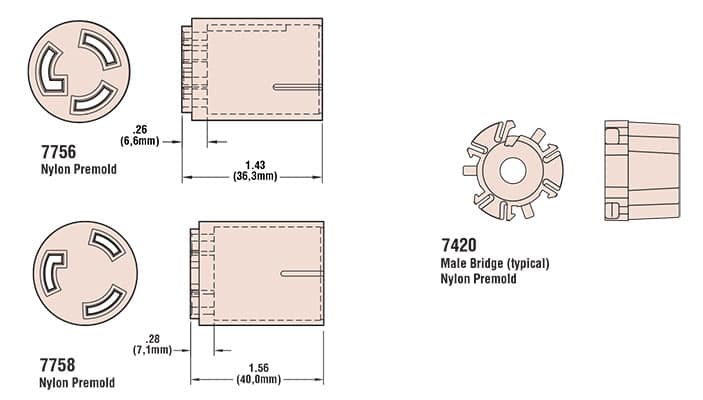

| 7756 | 125V 15A FEM TL 2PC PREMOLD | L5-15R | 15 | Click here | ||
| 7752 | 277V 15A FEM TL 2PC PREMOLD | L7-15R | ||||
| 7758 | 125V 20A FEM TL 2PC PREMOLD | L5-20R | 20 | Click here | ||

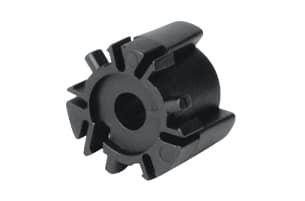

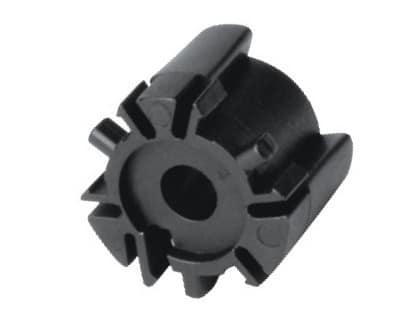

Male Turn-2-Lock Premold Bridges For Finished Male T2L Configurations, see L5-15P thru L5-20P, L5-20P thru L6-15P, L6-15P thru L7-15P, and L7-20P thru L8-20. |
||||||
| Part No. Black | Description | NEMA Config. | AMPS | For Contacts | ||
| S7424 | 125V 15A MALE TL PREMOLD | L5-15P | 15 | Click here |  |
|
| S7428 | 250V 15A MALE TL PREMOLD | L6-15P | |
|||
| S7420 | 277V 15A MALE TL PREMOLD | L7-15P | |
|||
| S7426 | 125V 20A MALE TL PREMOLD | L5-20P | 20 | Click here | |
|
| S7422 | 277V 20A MALE TL PREMOLD | L7-20P | |
|||
| S7432 | 347V 20A MALE TL PREMOLD | L24-20P | |
|||
| S7434 | 480V 20A MALE TL PREMOLD | L8-20P | |
|||
| S7438 | 125V 30A MALE TL PREMOLD | L5-30P | 30 | Click here |  |
|
| S7436 | 250V 30A MALE TL PREMOLD | L6-30P | ||||
IEC-320 C13 Receptacle Shell - Body & Cover For preassembled IEC-320 C13 Premold including contacts, click here. |
||||||
| Part No. Black | Description | |||||
| S7780 | IEC-320 C13 PREMOLD SET | |||||
| IEC-320 C14 Plug available, click here. | ||||||
Tri-Tap Power Block Shell - Body & Cover For preassembled Tri-Tap Premolds including contacts, click here. |
||||||
| Part No. | Description | |||||
| Black | Natural | |||||
| 0387 | 0387EE | Tri-Tap Body | ||||
| 0388 | 0388EE | Tri-Tap Cover | ||||
| Materials | Nylon 6/6 |
|---|
