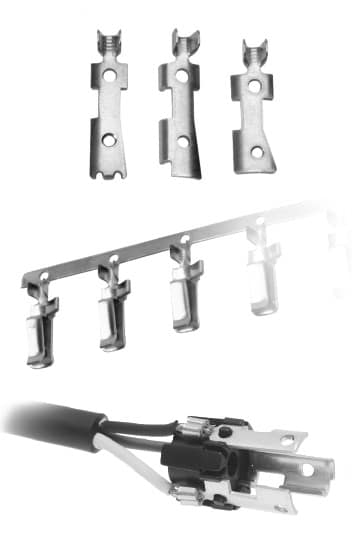

Heyco® Turn-2-Lock Cordset Contacts - 30 Amp

Specifications

Part number and specification

PART DATA			PART NO.	APPLICATION TOOLING*					PDF
Type	AWG Range	Material	PART NO.	Die**	Feeds	Tool Packs	Crimp Punch	Anvil	PDF
Male - for Male Nylon Premold Bridges

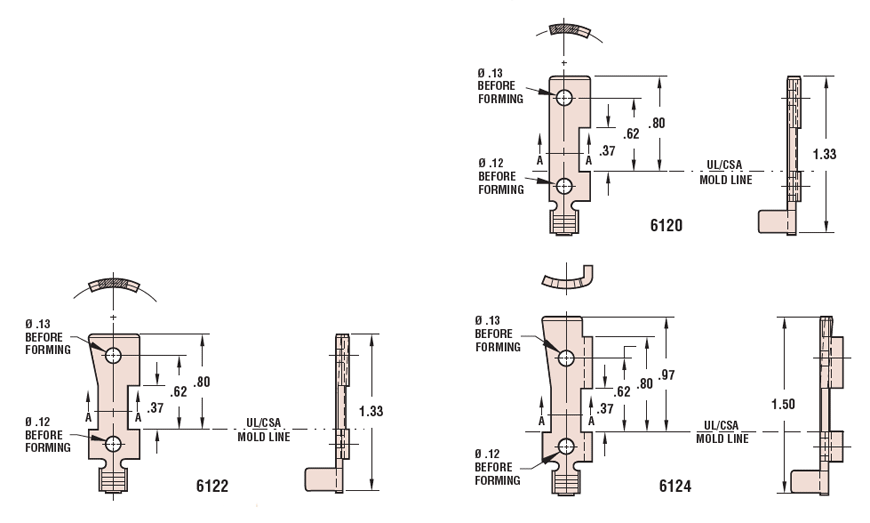

TL-L5-30-W	10-8	Brass	6120	6120UXX5	Bulk	B958/B959	C663	C667
TL-L5-30-B	10-8	Brass	6122	6122UXX5
TL-L5-30-G	10-8	Brass	6124	6124UXX5

* Use the Heyco Universal Applicator Die (indicated by “U” in the Die Part No.), click here. ** “XX” represents Wire Gauge. Please specify Wire Gauge when ordering.

Features

30 Amp

For Finished, Custom Turn-2-Lock Cord and Plug Sets, see the Turn-2-Locks section.

.068″ gauge material, cut-out shapes and radius are all UL Specified.
DFARS Compliant

QuickSpecs

Materials		Alloy 260 Brass (70% Cu, 30% Zn. Higher Cu content resists dezincification)
Materials		Nylon 6/6
Certification		Listed under UL File E217650 for use with Cordsets under UL 817 applications (Cordset Components only)

Competitor Cross Reference

Use our cross-reference tool to find equivalent Heyco parts that match competitor products, ensuring compatibility and performance.
