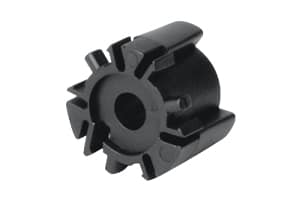

Heyco® Nylon Premolds

  • Part Numbers and Specifications
  • Features

Female Turn-2-Lock Premold Shells
For Finished Female T2L Configurations, click here.

Part No.
Natural
Description NEMA Config. AMPS For Contacts

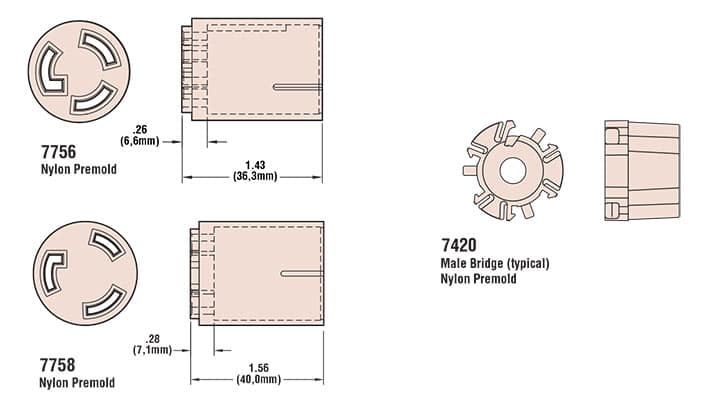

7756 125V 15A FEM TL 2PC PREMOLD L5-15R 15 Click here
7752 277V 15A FEM TL 2PC PREMOLD L7-15R
7758 125V 20A FEM TL 2PC PREMOLD L5-20R 20 Click here

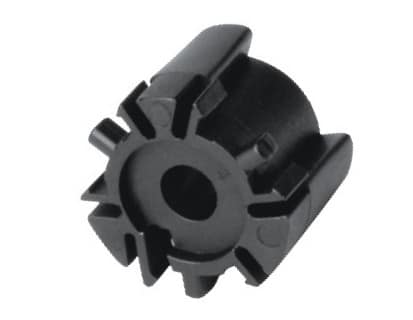

Male Turn-2-Lock Premold Bridges
For Finished Male T2L Configurations, see L5-15P thru L5-20P, L5-20P thru L6-15P, L6-15P thru L7-15P, and L7-20P thru L8-20.

Part No.
Black
Description NEMA Config. AMPS For Contacts PDF
S7424 125V 15A MALE TL PREMOLD L5-15P 15 Click here PDF
S7428 250V 15A MALE TL PREMOLD L6-15P PDF
S7420 277V 15A MALE TL PREMOLD L7-15P PDF
S7426 125V 20A MALE TL PREMOLD L5-20P 20 Click here PDF
S7422 277V 20A MALE TL PREMOLD L7-20P PDF
S7432 347V 20A MALE TL PREMOLD L24-20P PDF
S7434 480V 20A MALE TL PREMOLD L8-20P PDF
S7438 125V 30A MALE TL PREMOLD L5-30P 30 Click here New
S7436 250V 30A MALE TL PREMOLD L6-30P

IEC-320 C13 Receptacle Shell - Body & Cover
For preassembled IEC-320 C13 Premold including contacts, click here.

Part No.
Black
Description
S7780 IEC-320 C13 PREMOLD SET
IEC-320 C14 Plug available, click here.

Tri-Tap Power Block Shell - Body & Cover
For preassembled Tri-Tap Premolds including contacts, click here.

Part No.
Description
Black Natural
0387 0387EE Tri-Tap Body
0388 0388EE Tri-Tap Cover

Reduce PVC usage and increase over molding efficiency
Eliminate the need for expensive cammed molds

  • Nylon male premold for use with Heyco blades and pins (consult Heyco for details on our complete line of blades and pins).
  • Reduce PVC usage and increase molding efficiency.

QuickSpecs

Materials Nylon 6/6
