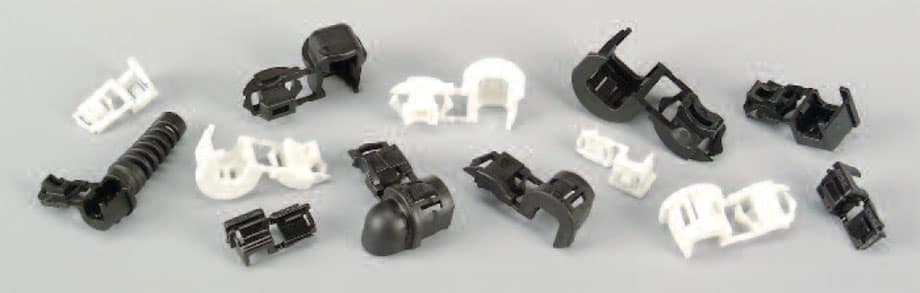

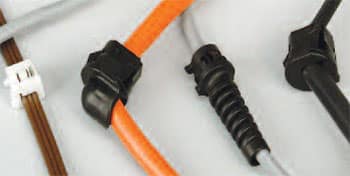

Heyco® Lockit™ Strain Relief
Pre-Assembly Equipment Directory

  • Equipment Directory

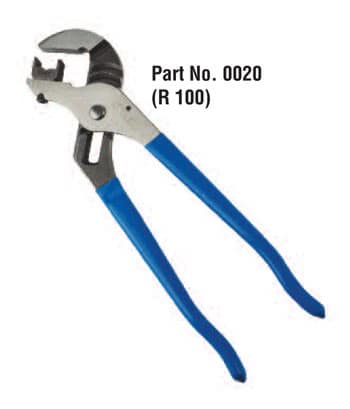

  • Hand Pliers
TO ASSEMBLE
Lockit™
Strain Relief Series
Product
Page
USE THE FOLLOWING PART NOS.
Hand
Pliers
A
Headlock
B
Footlock
C
Autolock
C†
Eurolock

RDD Lockits

RDD 100, RDD 100A View 0026 ST16 ST14
ST14E
ST13 ST13E
RDD 101, RDD 101A View
RDD 100-90, RDD 100A-90 View 0026 * * * *
RDD 101-90, RDD 101A-90 View
RDD 100-7, RDD 100A-7 View
RDD 101-7 View
RDD 200, RDD 200-2 View 0027 ST17 ST19 ST18 *
RDD 201, RDD 201-2 View
RDD 301, RDD 301-2 View
RDD 401 View
RDD 200-90 View 0027 ST17-90 ST17-90 * *
RDD 201-90 View
RDD 301-90 View
RDD 501 View ** ST20 ST27 ST26 *
RDD 510 View
RDD 601 View ** ST31 ST34 * *
RDD 6N-2 View ** ST32 ST33 * *
RDD 701 View ** ST35 * * *

ST Lockits

ST 100L View 0023 ST12 ST11 ST10 *
ST 100N View 0020 0ST1 0ST4 0ST3 0ST3E
ST 101N View
ST 101A View 0025 ST15 0ST0 0ST6 *
ST 200N View 0073 0ST7 0ST9 0ST8 *
ST 201N, ST 301N View

† ST14E guarding meets European standards.
Eurolock ST13E and OST3E have a 230V 50/60 Hz rated motor.
*Consult Heyco for availability.
**Headlock, Footlock or Autolock required due to cable thickness.

Strain Reliefs Hand Pliers
Hand Pliers Instructions
